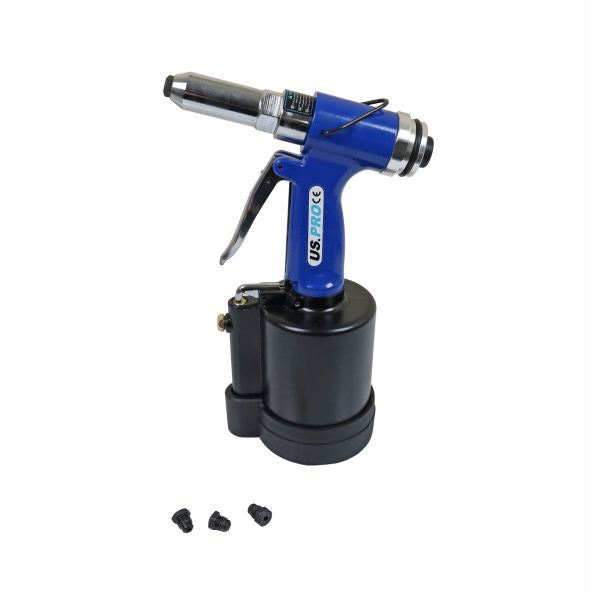

AIR HYDRAULIC RIVETER 8226

This air riveter is supplied with 4 nose pieces to accept 3.2, 4.0, 4.8 and 6.4mm blind aluminium and steel rivets. The hydraulic action generates a substantial 13.72 kN of traction power.

Stroke length: 16mm (5/8'')

Traction power: 13.72 kN (3086lbs, 1400kgs)

Air inlet: 1/4'' BSPT

Air hose: 3/8''

Air consumption: 4 cfm

Working pressure: 90psi, 6.3bar

Noise: 81 dB(A)

Vibration: 20.96 m/s²
